Cable de fribra óptica acorazado al aire libre
>
GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding

GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding

Nombre De La Marca: HXCOWO
Número De Modelo: Se aplicará el método siguiente:
MOQ: 50
Información detallada
Lugar de origen:
Guangdong, China
Certificación:
RoHS
Número de núcleos de fibra:
2-288 núcleos
Diámetro:
13,9-20,2mm
Peso:
202-281 kilos/km
Fuerza de tracción:
1000/3000N
Presión permitida:
1000/3000N/100mm
Tipo de fibra:
G652D/G657A1/G657A2
Temperatura de funcionamiento:
-40°C a 70°C
Método de colocación:
Entierro directo
Material de la vaina:
PE/PVC/LSZH/PC
Tipo de cable:
Armaduras para exteriores
Material de la chaqueta:
Se aplican las siguientes condiciones:
Número de conductores:
≥ 10
Tipo de paquete:
Tambor de madera
Resistencia a la tracción:
Se trata de un sistema de control de las emisiones.
Vida útil:
Largo
Resaltar:

Wooden Drum Packaging Outdoor Armored Fiber Optic Cable

,

OEM ODM Service GYFTA53 Fiber Cable

,

Low Loss High-Speed Fusion Welding Armored Fiber Optic Cable

Descripción de producto

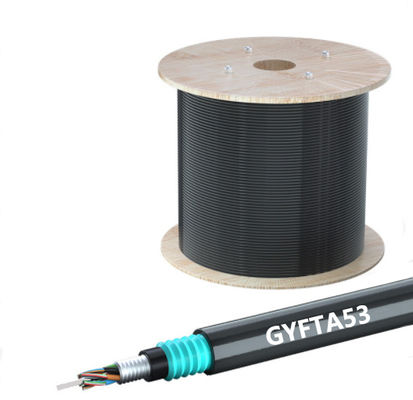

GYFTA53 Outdoor Armored Fiber Optic Cable

High-quality single-mode outdoor double armored fiber optic cables designed for long-distance communication and inter-office applications.

Technical Parameters
Fiber Core Number Diameter (mm) Weight (kg/km)
2-36 13.9 202
38-72 15.1 241
74-96 17.1 290
98-120 18.6 333
122-144 20.2 281
Allowable Tensile Force (N) Allowable Pressure (N/100mm)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
Fiber Type: G652D
Laying Method: Direct burial
Operating Temperature: -40℃ to +70℃
Application: Suitable for long-distance communication and inter-office communication
GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding 0
Key Features
  • Double Armored Protection: Designed for underground laying, outdoor overhead, and indoor trunking applications
  • Low Loss, High-Speed Fusion Welding: High-quality fiber cores with optimized attenuation and dispersion

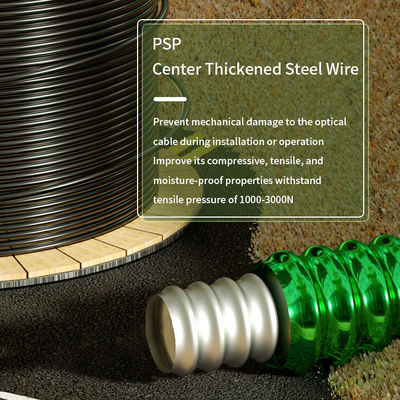

  • Center Thickened Steel Wire: Prevents mechanical damage and improves compressive, tensile, and moisture-proof properties
  • Durable PE Sheathing: Made from engineering plastics with strict manufacturing process for long service life
  • Clear Meter Markers: Convenient and fast construction wiring with visible meter markings
GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding 1 GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding 2 GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding 3
Customization Options

We accept customized specifications including sheath materials (PE/PVC/LSZH/PC) and other requirements.

Contact Us for Customization
Company Profile

Dongguan HX Fiber Technology Co., Ltd. is a leading fiber optic cable manufacturer in South China, established in 2010 with the brand HXCOWO. We specialize in optical fiber cabling solutions for data centers, enterprise networks, and operators.

GYFTA53 Outdoor Armored Fiber Optic Cable with Wooden Drum Packaging OEM ODM Service and Low Loss High-Speed Fusion Welding 4
Quality Assurance
  • ISO9001:2015 certified
  • 6,000 sqm workplace with 7 production assemblies
  • Monthly output capacity of 1500km fiber optic cables
  • Products exported worldwide to Europe, America, Asia, South America, and Africa
Frequently Asked Questions
1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.
