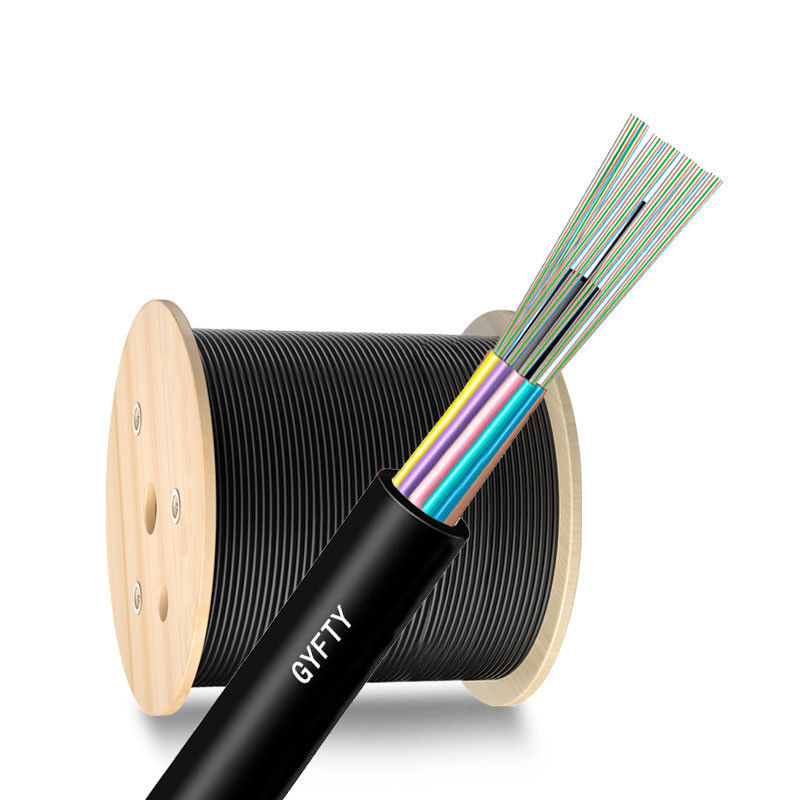

HDPE Jacket HXCOWO GYFTY 2-288Core SM G652D Duct Fiber Optic Cable for Connection

Nombre De La Marca:	HXCOWO
Número De Modelo:	Las demás:
MOQ:	50 metros
Precio:	negotiable
Detalles Del Embalaje:	Eje de madera+Caja de cartón para la exportación

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

El tipo:

Cables de fibra óptica para exteriores

Número de conductores:

Aplicación:

Comunicación de las telecomunicaciones

Nombre del producto:

Cable óptico de fibra óptica GYFTY

El chaqueta:

Se aplican las siguientes condiciones:

Duración:

Duración personalizada

Tipo de fibra:

G652D/G657A1/G657A2

Número de fibras:

2-288 corazones

Palabra clave:

Cable al aire libre de la fibra

Color de la chaqueta:

Requisitos especiales de los clientes

Servicio:

El ODM del OEM acepta

Puerto:

- ¿ Por qué no?

Capacidad de la fuente:

1500000 pedazos/pedazos por Mes

Resaltar:

Cable de conexión de fibra óptica

Cables de fibra óptica de conducto de conexión

288Cable de fibra óptica de conducto central

Descripción de producto

TECHNICAL PARAMETERS
Core Number	Loose Tube Quantity	Filling Rope Number	Fiber Cable Diameter(mm)
2-6	1	4	9
8-12	2	3	9
14-18	3	2	9
20-24	4	1	9
26-30	5	0	9
32-36	5	0	9
38-48	5	0	9
50-60	5	0	9
62-72	6	0	9.5
74-84	7	1	10.5
86-96	8	0	10.5
98-108	9	1	11.5
110-120	10	0	12
122-144	12	0	13
146-216	18	0	13

Fiber Optic Cable Weight (kg/km)	Allowable Tensile Force Long Term/Short Term (N)	Allowable Flattening Force Long Term/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
88	800/1500	500/1000	15D/30D
100	1000/2000	500/1000	15D/30D
120	1000/2000	500/1000	15D/30D
120	1500/2500	500/1000	15D/30D
150	1500/2500	500/1000	15D/30D
150	1500/2500	500/1000	15D/30D
150	1500/2500	500/1000	15D/30D
150	1000/2000	500/1000	15D/30D
PRODUCT FEATURES
①Has good mechanical properties and temperature characteristics
②The loose tube material itself has good hydrolysis resistance and high strength
③The tube is filled with special grease to provide critical protection for the optical fiber
④Good pressure resistance and softness
Use the following measures to ensure the waterproof performance of fiber optic cables
①Single non-metallic center strengthening core
②The loose tube is filled with special waterproof compound
③Fully cable core filled

PRODUCT DESCRIPTION

OUTDOOR FIBER OPTIC CABLE

A-grade Fiber Core/Quality Assurance

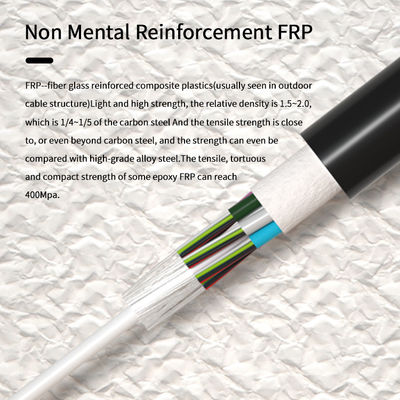

NON MENTAL REINFORCEMENT FRP

FRP--fiber glass reinforced composite plastics(usually seen in outdoor cable structure)Light and high strength, the relative density is 1.5~2.0, which is 1/4~1/5 of the carbon steel And the tensile strength is close to, or even beyond carbon steel, and the strength can even be compared with high-grade alloy steel.The tensile, tortuous and compact strength of some epoxy FRP can reach 400Mpa.

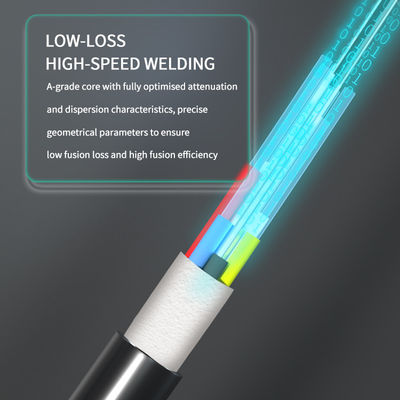

LOW-LOSS, HIGH-SPEED WELDING

A-grade core with fully optimised attenuation and dispersion characteristics, precise geometrical parameters to ensure low fusion loss and high fusion efficiency

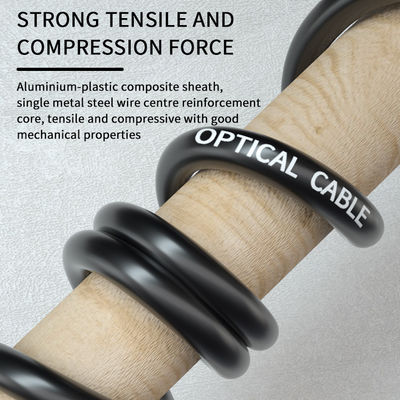

STRONG TENSILE AND COMPRESSION FORCE

Aluminium-plastic composite sheath, single metal steel wire centre reinforcement core, tensile and compressive with good mechanical properties

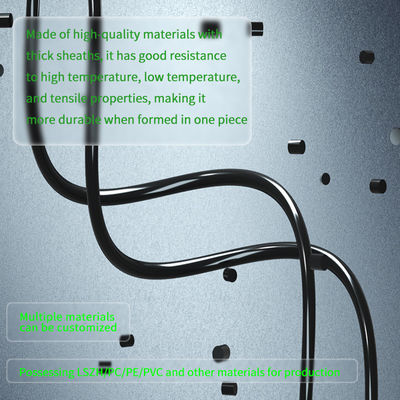

Made of high-quality materials with thick sheaths, it has good resistance to high temperature, low temperature, and tensile properties, making it more durable when formed in one piece

Possessing LSZH/PC/PE/PVC and other materials for production

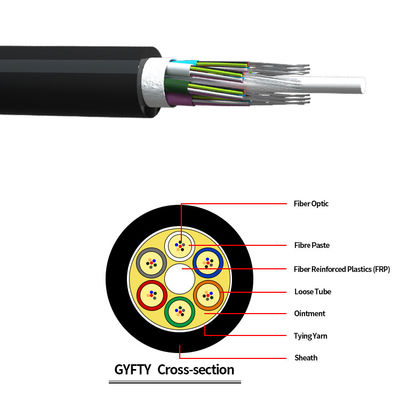

GYFTY

There is a glass fiber reinforcement plastic at the center of the fiber core.Loose tube (and filling rope) is twisted around the FRP to form a round cable core, and the inner side is filled with waterblocking compounding. And the inner jacket for each cable core is PE material

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
