Black ADSS Fiber Optic Cable Multi Mode For High Speed Data Transmission

Nombre De La Marca:	HX
Model Number:	Se aplicará el método siguiente:
Precio:	negotiable
Detalles Del Embalaje:	Cable de doble chaqueta de un solo modo OS1 OS2 dieléctrico para aire libre ADSS de 48 núcleos de fi

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

El tipo:

Cables de fibra óptica

Número de conductores:

Aplicación:

Comunicación de las telecomunicaciones

Nombre del producto:

CABLE DE LA FIBRA DE ADSS

El color:

Negro

El chaqueta:

Cubierta de PE doble o simple

Número de fibras:

6 8 12 24 36 48 72 96 144 288

Tipo de fibra:

Modo único / Modo múltiple

Duración:

Duración personalizada

Tipo de cable:

Cables de fibra óptica para exteriores

Envasado:

Carrete de madera/de la madera contrachapada

Puerto:

- ¿ Por qué no?

Capacidad de la fuente:

1500000 pedazos/pedazos por Mes

Resaltar:

Black ADSS Fiber Optic Cable

ADSS Fiber Optic Cable Multi Mode

Data Transmission ADSS Fiber Optic Cable

Descripción de producto

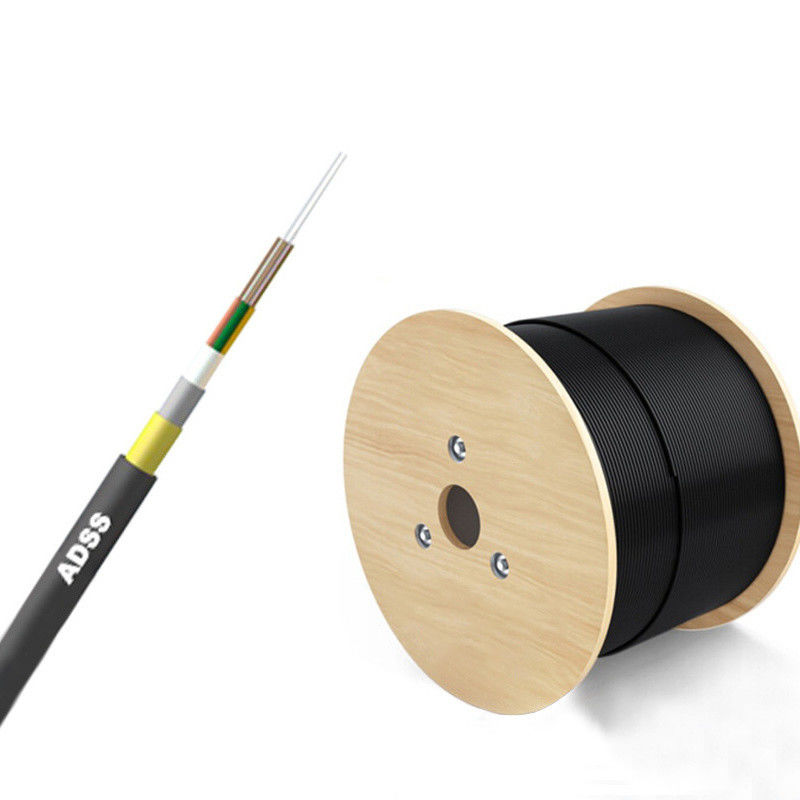

Black ADSS Fiber Optic Cable for High Speed Data Transmission in Multi Mode Fiber Type

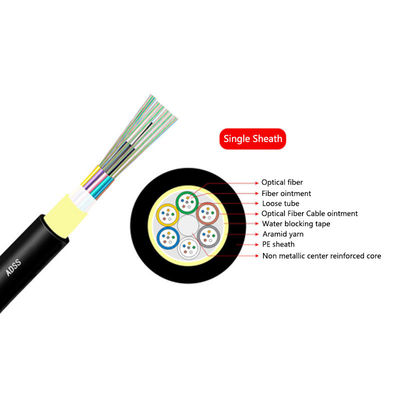

Single sheath
Reference outer diameter (mm)	Reference weight(Kg/Km)			Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
Reference outer diameter (mm)		PE outer sheath	AT outer sheath	Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
9.0	75	85	1.2	3	7
9.8	80	90	1.5	5	10
10	90	100	2	6	15
10	90	100	2.2	8	18
Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)			Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)	suitable span (M)
3	4.5			-40~+60	1.2	50
3.5	7			-40~+60	1.3	100
4.5	8.3			-40~+60	1.3	150
7.5	9.5			-40~+60	1.3	200

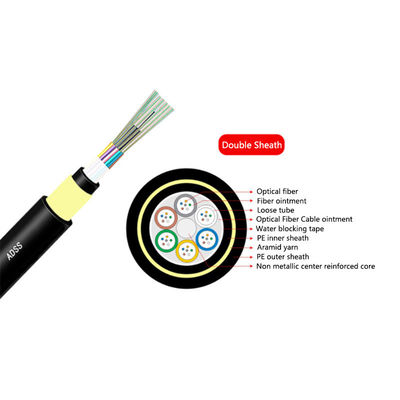

Double sheath
Reference outer diameter (mm)	Reference weight(Kg/Km)			Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
Reference outer diameter (mm)		PE outer sheath	AT outer sheath	Daily average working tension (KN)	Maximum allowable working tension (KN)	Breaking strength (KN)
11.5	125	136	1.5	4	10
12	132	142	2.25	6	15
13.3	137	148	3	8	20
13.6	145	156	3.6	10	24
13.8	147	159	4.5	12	30
14.5	164	177	5.4	15	36
14.9	171	185	6.75	18	45
15.1	179	193	7.95	22	53
Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)			Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)	Suitable span (m) (corresponding to meteorological conditions)
Tensile element cross-sectional area (㎜²)	Elastic Modulus (KN/㎜²)			Operating, storage and transport temperature range (℃)	Thermal expansion coefficient (10-6/K)					A	B	C	D
4.6	7.6			-40~+60	1.8	160	100	140	100
7.6	8.3			-40~+60	1.5	230	150	200	150
10.35	9.45			-40~+60	1.3	300	200	290	200
13.8	10.8			-40~+60	1.2	370	250	350	250
14.3	11.8			-40~+60	1.0	420	280	400	280
18.4	13.6			-40~+60	0.9	480	320	460	320
22	16.4			-40~+60	0.6	570	380	550	380
26.4	18			-40~+60	0.3	670	460	650	460

Meteorological region	Wind speed (m/s)	Icing (mm)	Extra negative (N/m)
A	25	0	0.7
B	35	0	0.7
C	10	5	2.5
D	10	10	4.4

Product Description

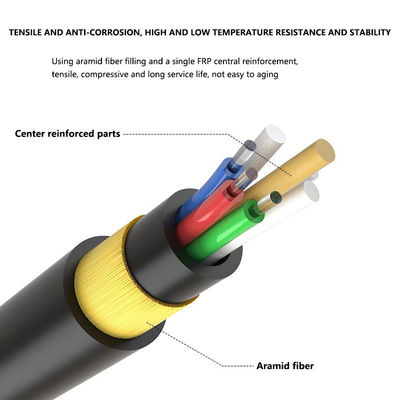

Product Design

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

Customer evaluation

Company Profile

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

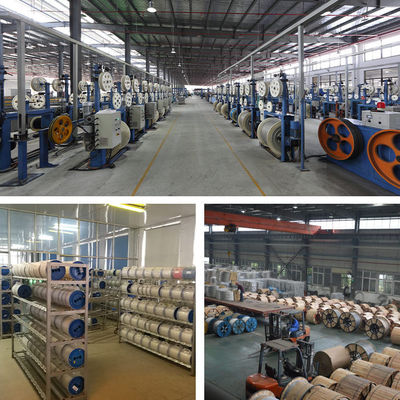

Service&Production Capacity

Foreign Exhibitions

Cooperative Brand&Certification

Payment&Transportation Method

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
